DCT™ 800V -

Explore the Impossible: More Drilling In More Places.

Discover the DCT™ 800V: Your Ultimate Solution for Next-Gen Drilling and Shallow Depth Wells.

Unlock unparalleled efficiency with our DCT™ 800V, a track-mounted, mobile drilling unit equipped with cutting-edge features for versatile applications. This compact and purpose-built unit is designed to excel in low-pressure, shallow depth wellbores, making it the perfect choice for all drilling and similar applications.

Equip your drilling operations with the DCT™ 800V's 80,000-pound capacity injector head, fluid swivel, and levelwind system, delivering superior performance and reliability. Invest in innovation, mobility, and productivity - choose the DCT™ 800V for your drilling needs.

dct™ 800v dct™ 800v

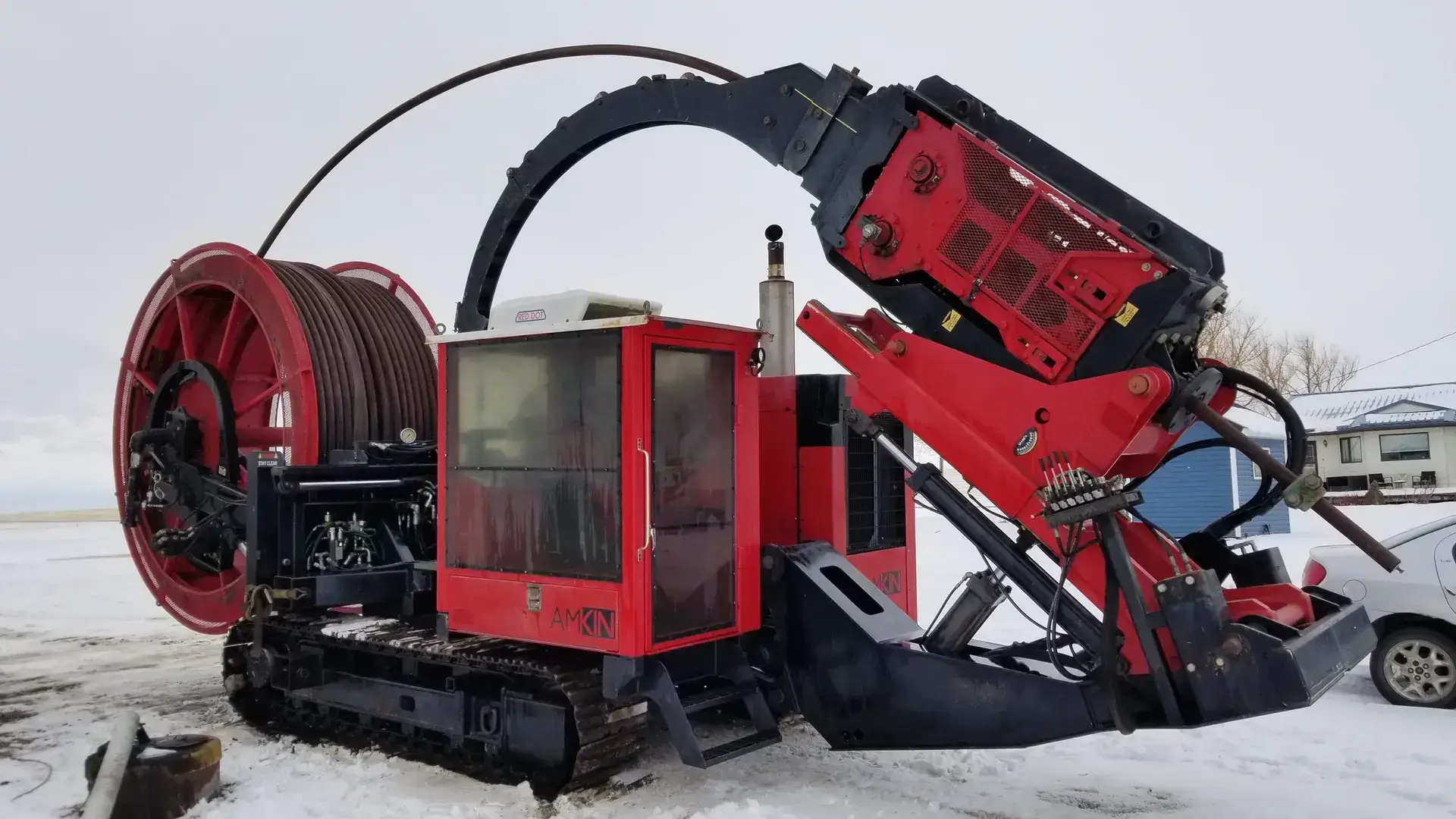

dct™ 800v on ice dct™ 800v on ice

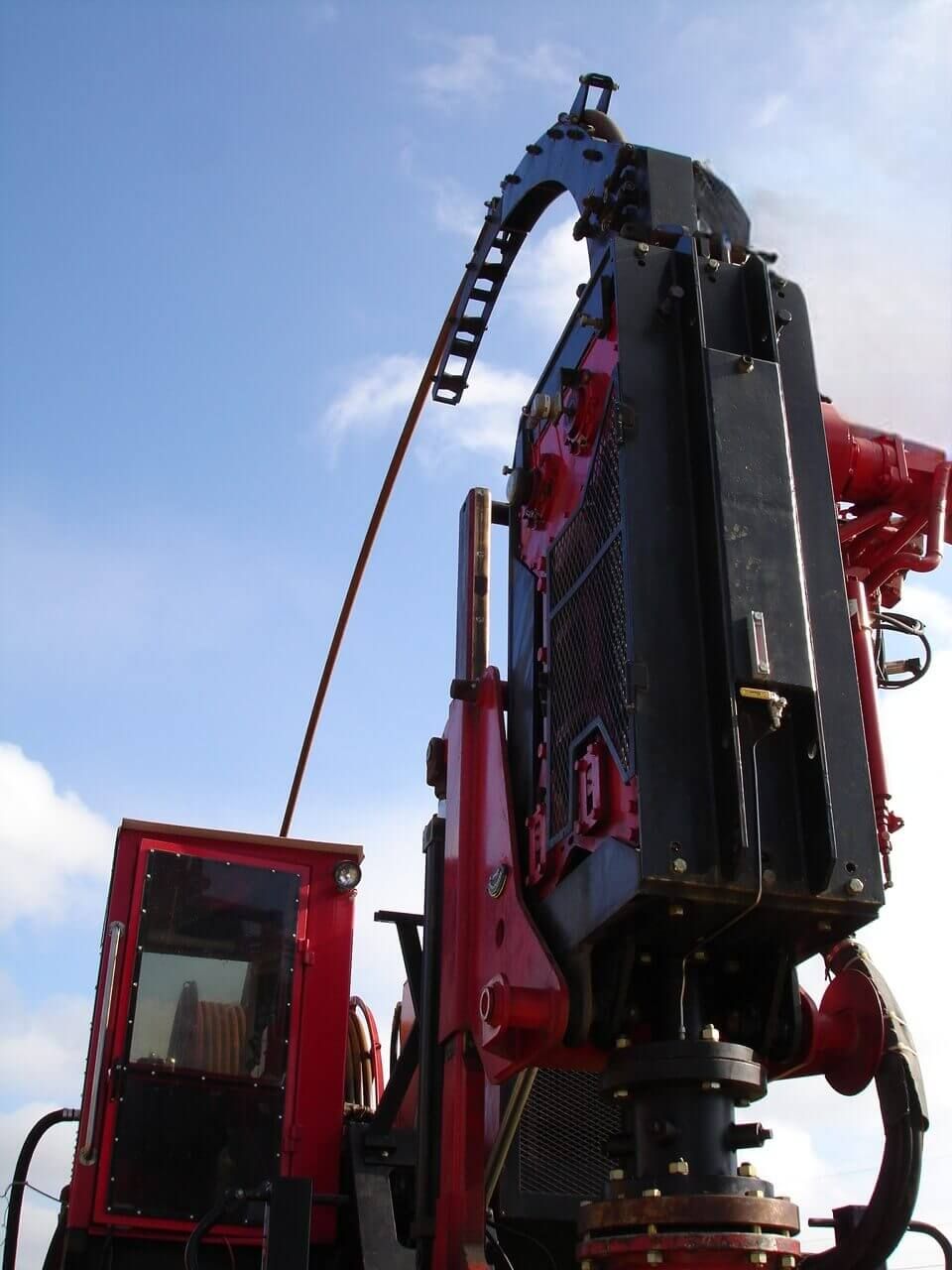

dct™ 800v close up dct™ 800v close up
dct™ 800v thumbnail
dct™ 800v on ice thumbnail
dct™ 800v close up thumbnail

Check Out The Highlights.

Remote Driven

Experience seamless control with remote-driven capabilities, ensuring precision during movement and setup.

Crawler Track Mobility

Easily navigate tough terrains with stable, flexible crawler track mobility in tight spaces.

Compact Design

Maximize small spaces with a compact design, perfect for tight locations.

Integrated Mast

Gain adaptability with a variable position mast and the option for a mud cleaner system for improved performance.

Air or Liquid Drilling Capable

Adapt to any drilling condition with the flexibility for both air and fluid methods.

Increased Productivity

Enhance drilling efficiency with an innovative design for wells ranging from 500-3000 ft deep.

Climate-Controlled Cabin

Enjoy a comfortable, controlled environment with a fully enclosed AC cabin for your drilling operations.

Multipower Transfer

Seamlessly transfer multipower with the AMKIN DCT™ speed connector, enhancing the unit's adaptability for different drilling scenarios.

Compatible Connections

Use CT drilling tools with DTH hammers seamlessly; their compatible connections ensure peak performance.

Take a Closer Look.

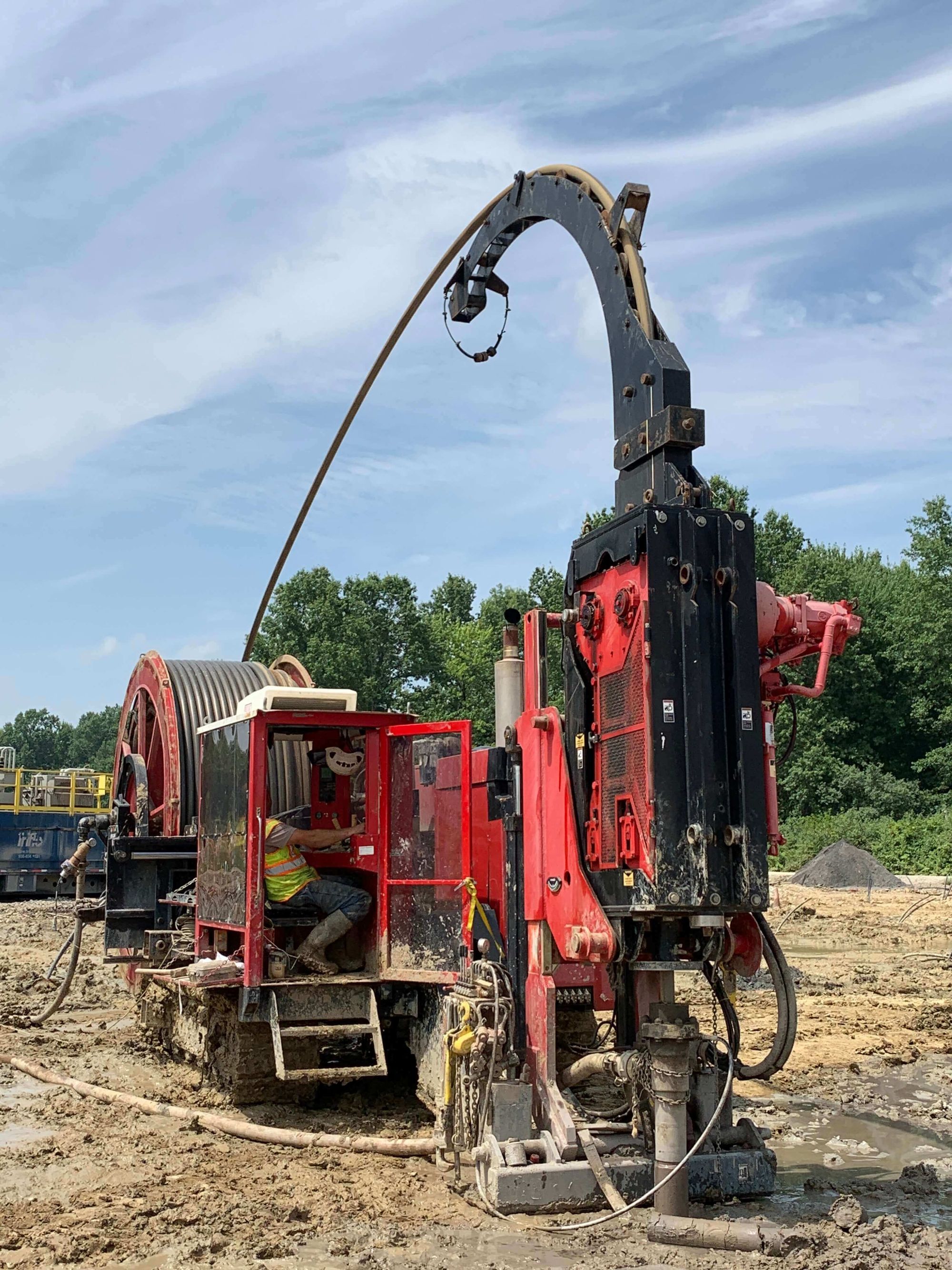

dct™ 800v hard at work

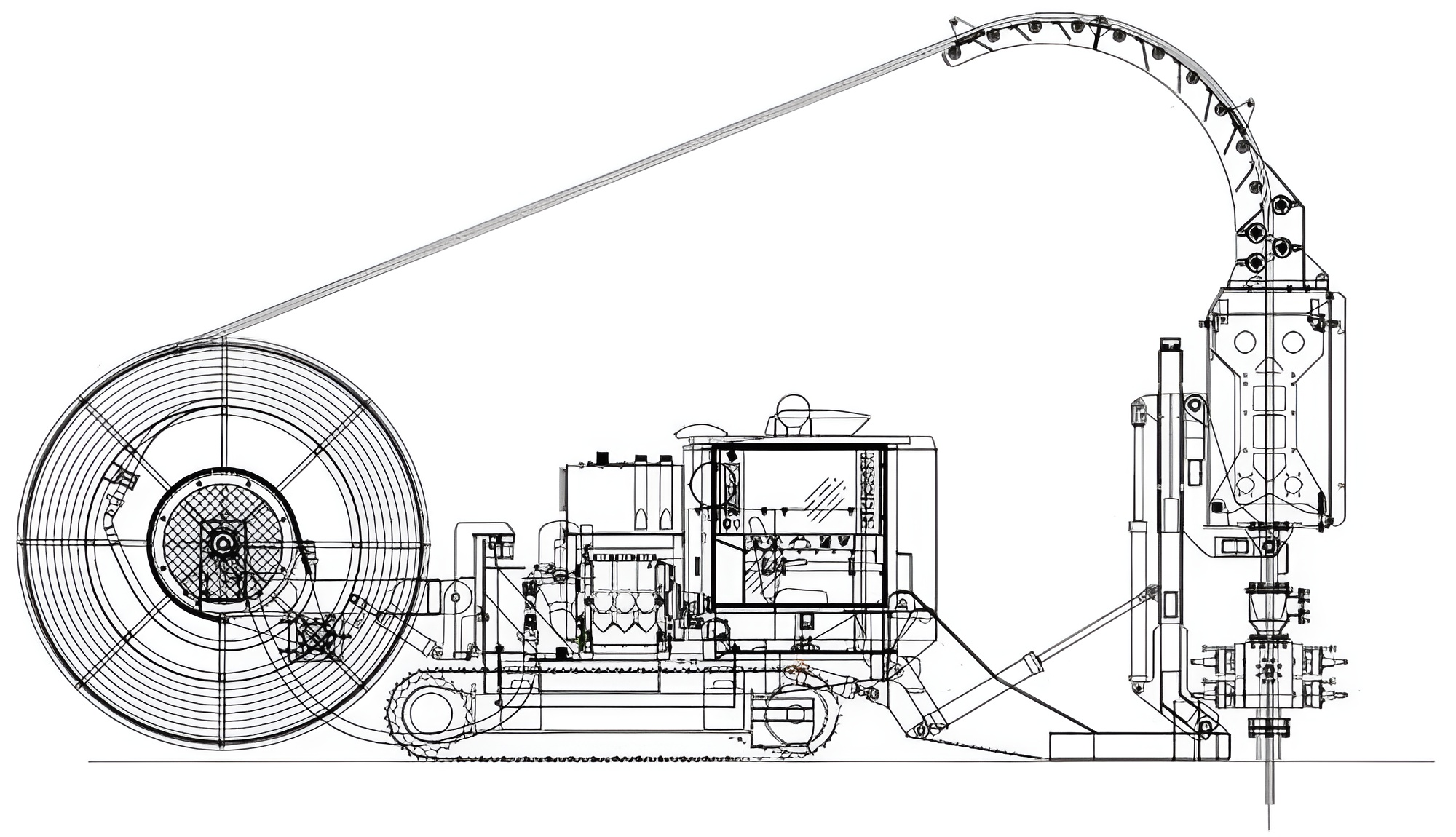

dct™ 800v diagram

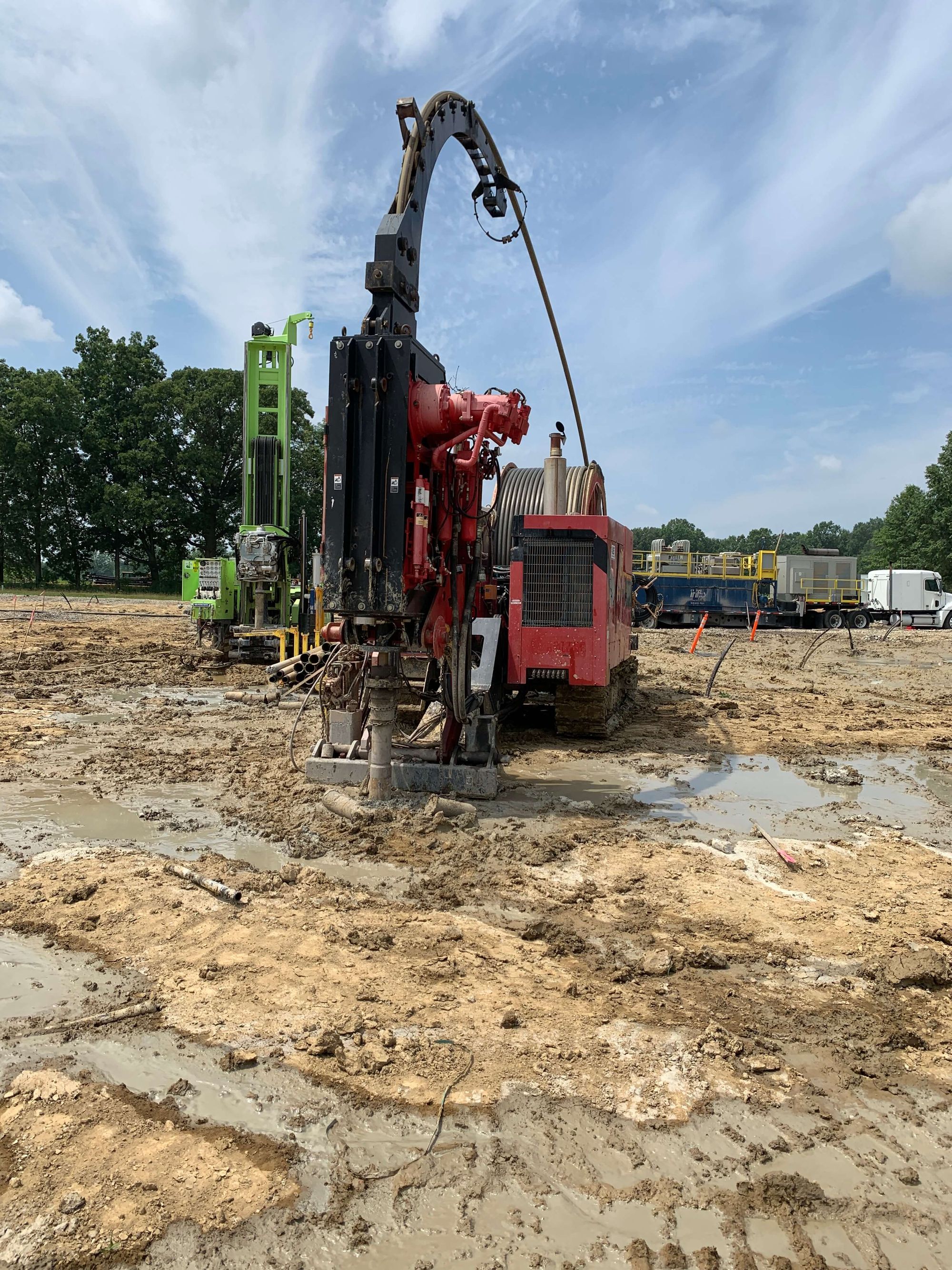

dct™ 800v drilling

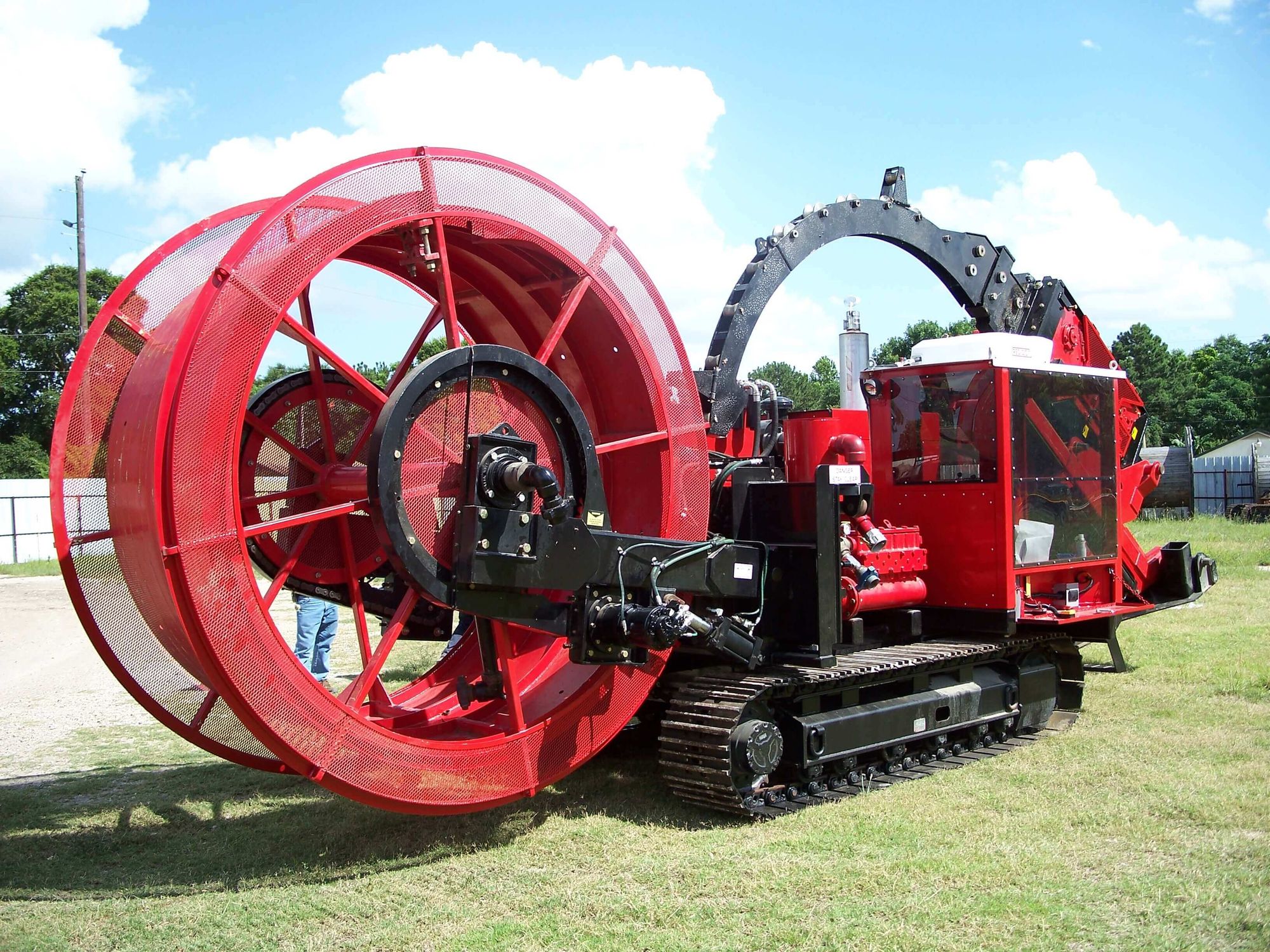

dct™ 800v

Inspect These Specs.

Injector HeadThrust (pull down) 40,000 lb
Pullback (lift) 80,000 lb
Power Plant265 hP Deutz Diesel QSB
Fluids64 gal Hydraulic Tank
110 gal Diesel Tank
Reel Capacity1800 + ft 2.875 in.
2000 + ft 2.625 in.
2800 + ft 2.375 in.
Hydraulic Level Rewind
Fluid SystemOnboard Triplex Pump Option - Typical 225 hp High pressure swivel
Drilling MotorMud Motor
Length: 9 ft.
Diameter: ~3.5 in.
Bit Speed: Variable - 200 RPM +/- Max
