DCT™ 600V -
Precision, Power, and Mobility for Next-Level Drilling.
Introducing the DCT™ 600V: Your Compact Solution for Next-Gen Drilling.

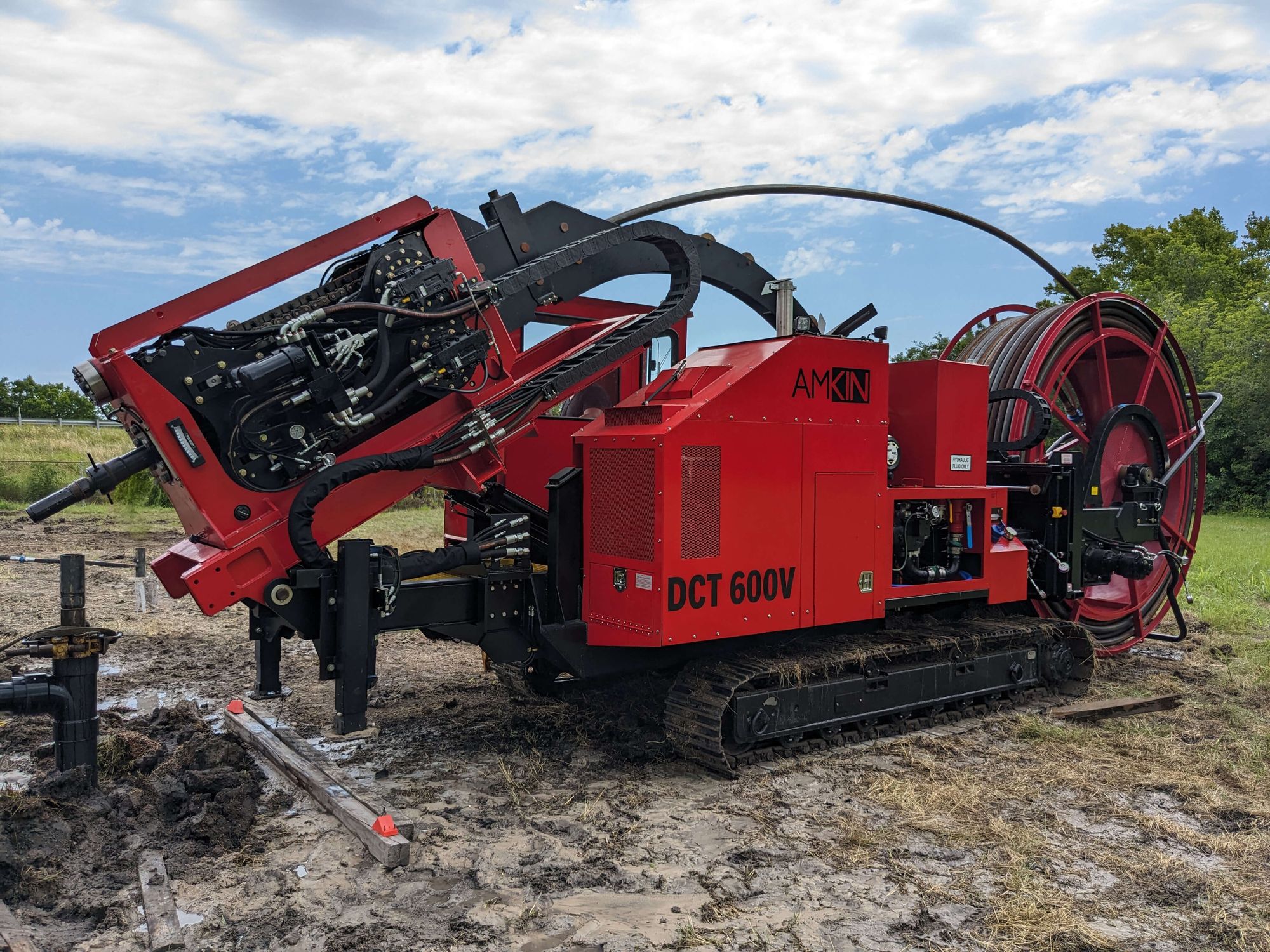

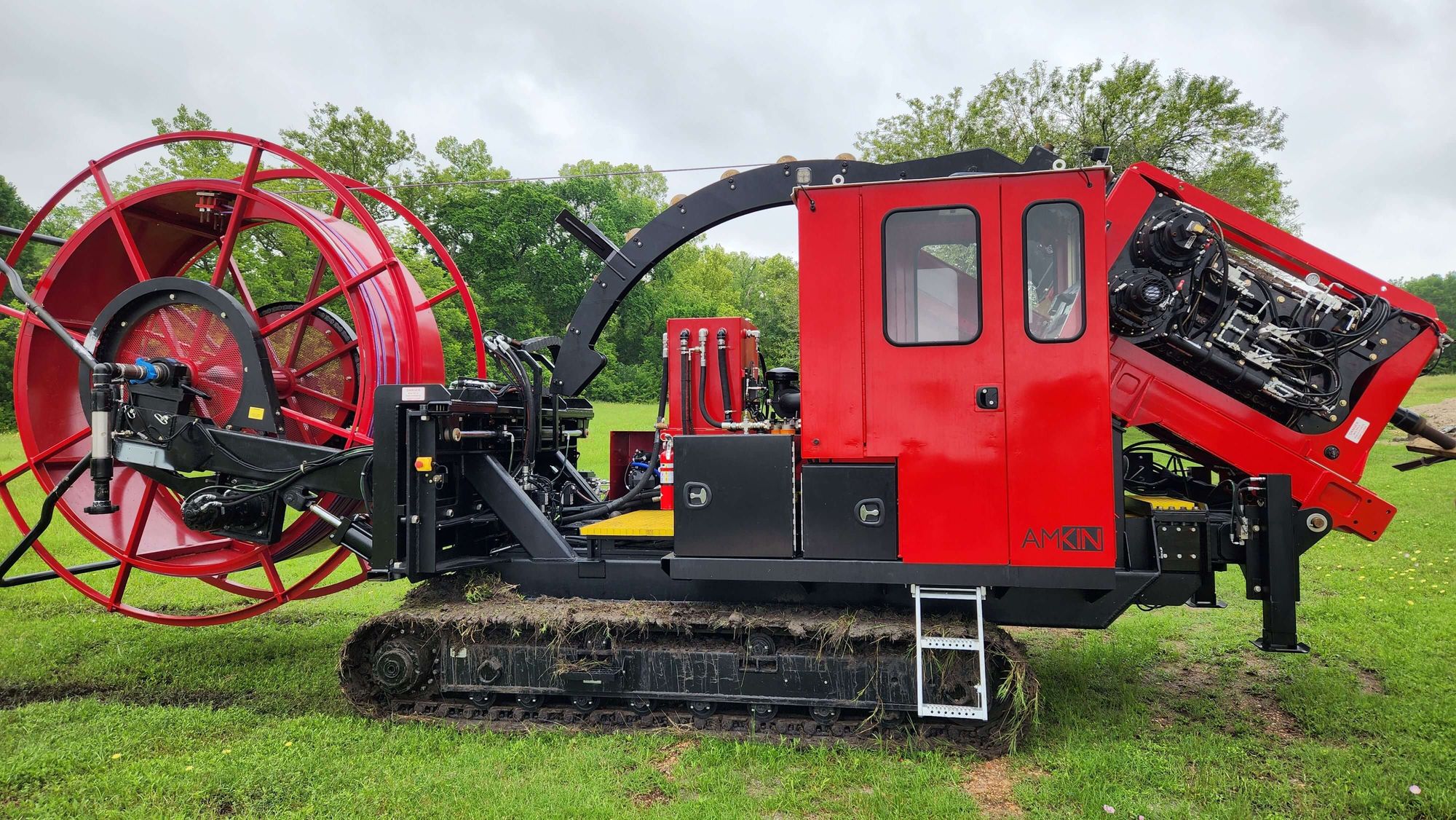

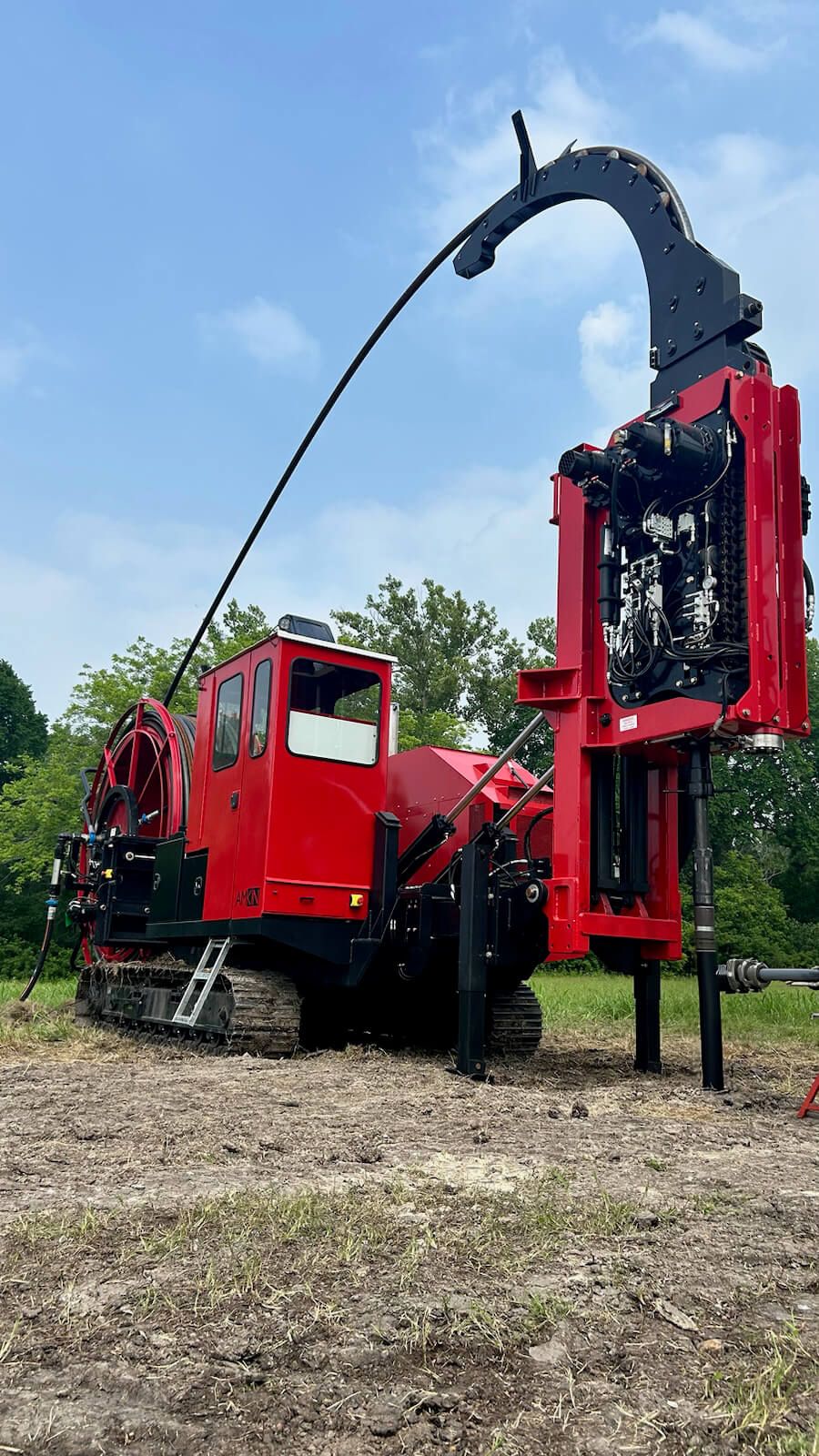

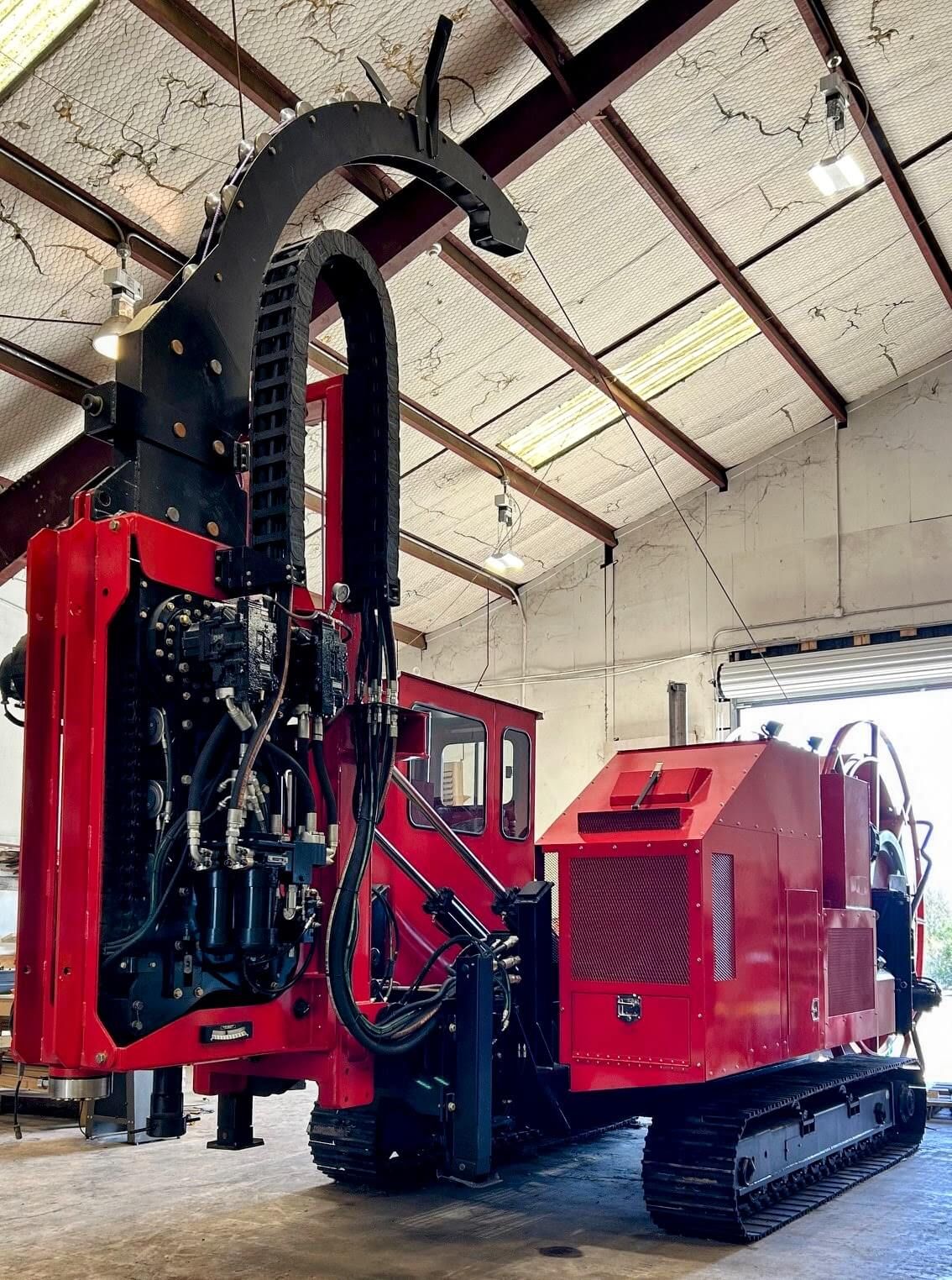

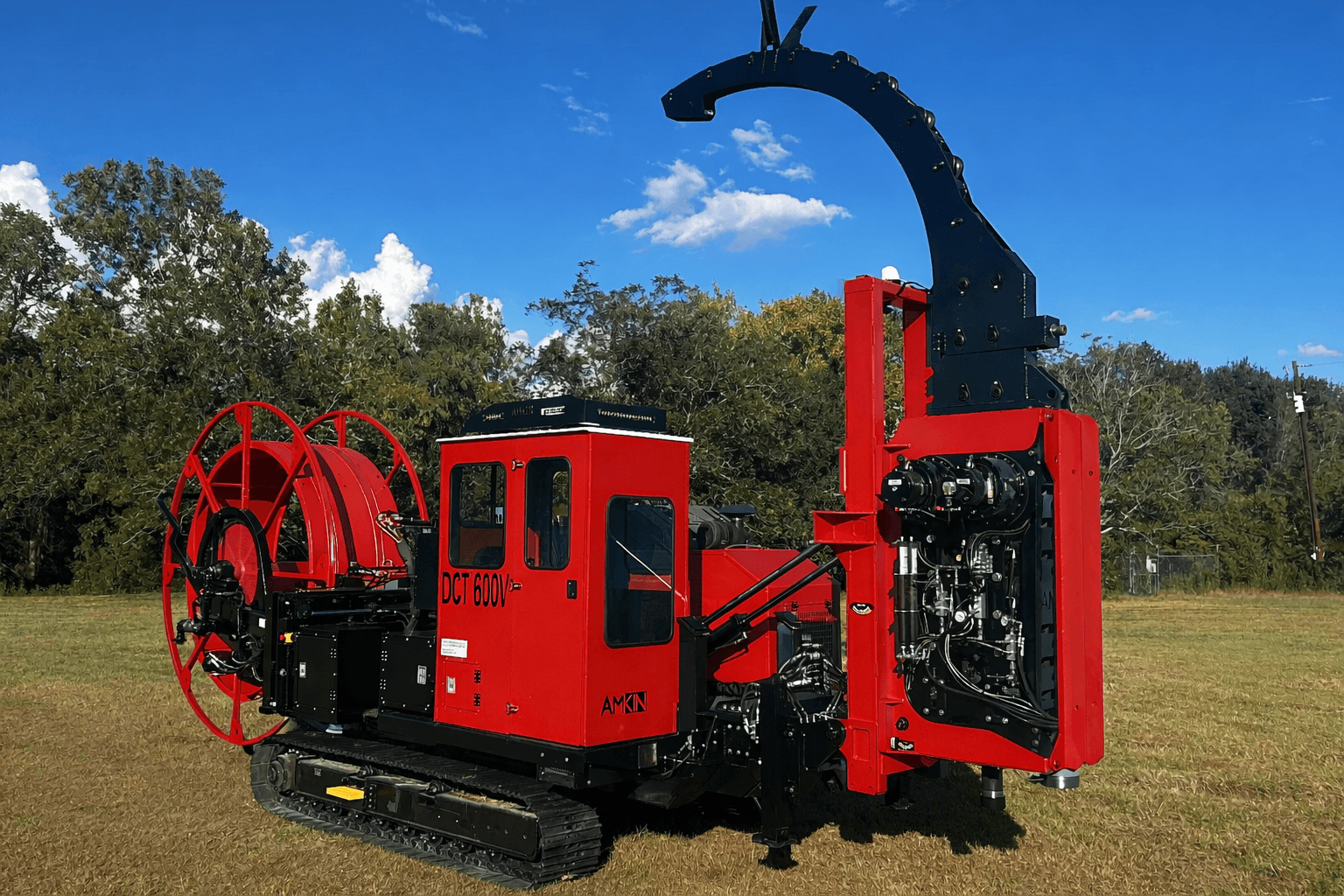

The DCT™ 600V is a powerful, track-mounted coiled tubing unit built for shallow depth, low-pressure drilling applications. With a 60,000-pound injector head, optional onboard mud pump, enclosed operator's cabin, and variable position mast, this unit is engineered for all drilling and similar operations reaching depths between 500 - 2,000 ft.
Equipped with Amkin DCT™ Speed Connectors, the 600V ensures seamless compatibility with API-standard downhole tools, mud motors, and drilling hammers. Its remote-control capability enhances safety during both movement and setup.
Check Out The Highlights.

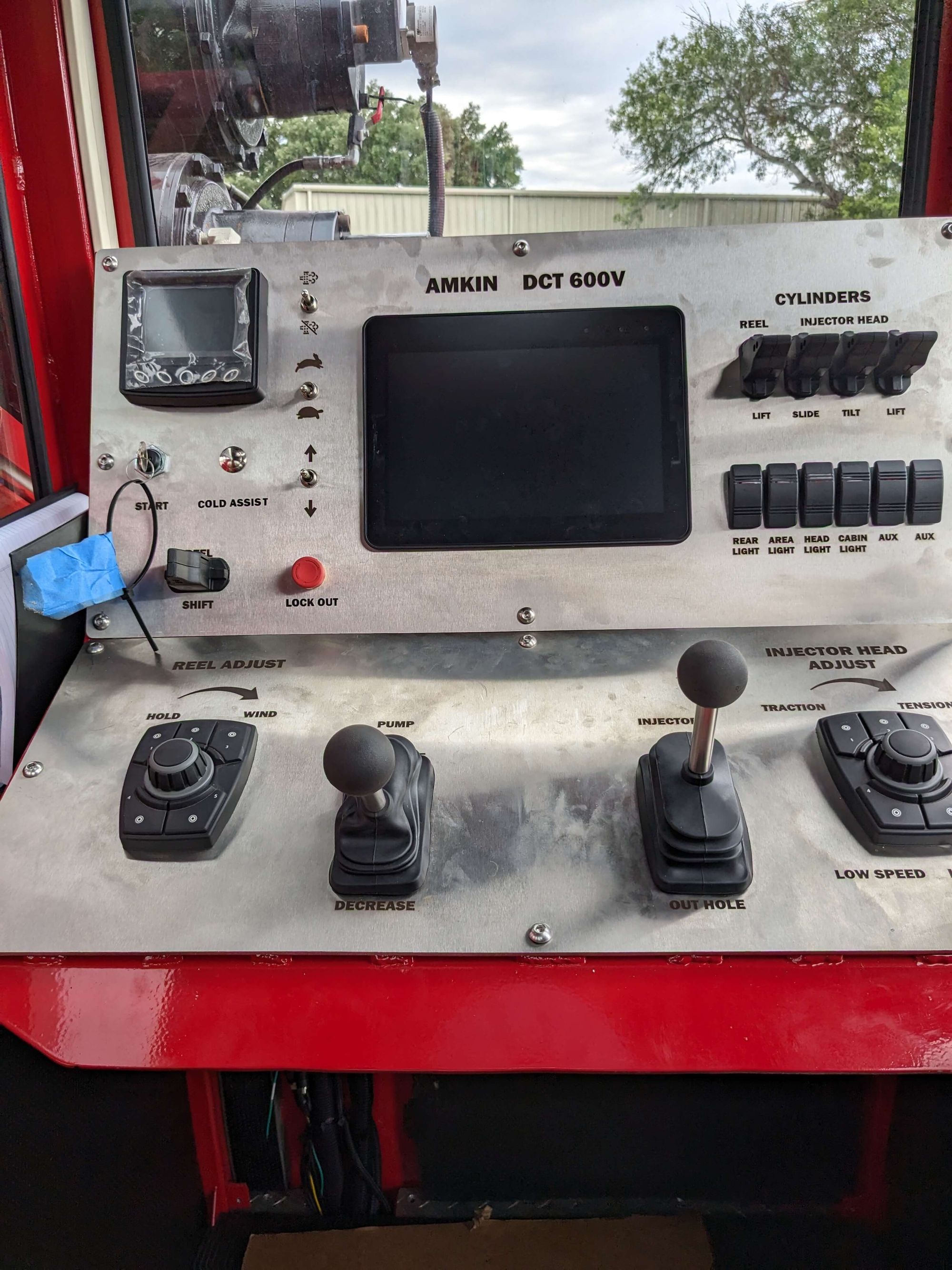

Remote Driven
Experience seamless control with remote-driven capabilities, ensuring precision during movement and setup.
Crawler Track Mobility
Easily navigate tough terrains with stable, flexible crawler track mobility in tight spaces.
Compact Design
Maximize small spaces with a compact design, perfect for tight locations.
Air or Liquid Drilling Capable
Adapt to any drilling condition with the flexibility for both air and fluid methods.

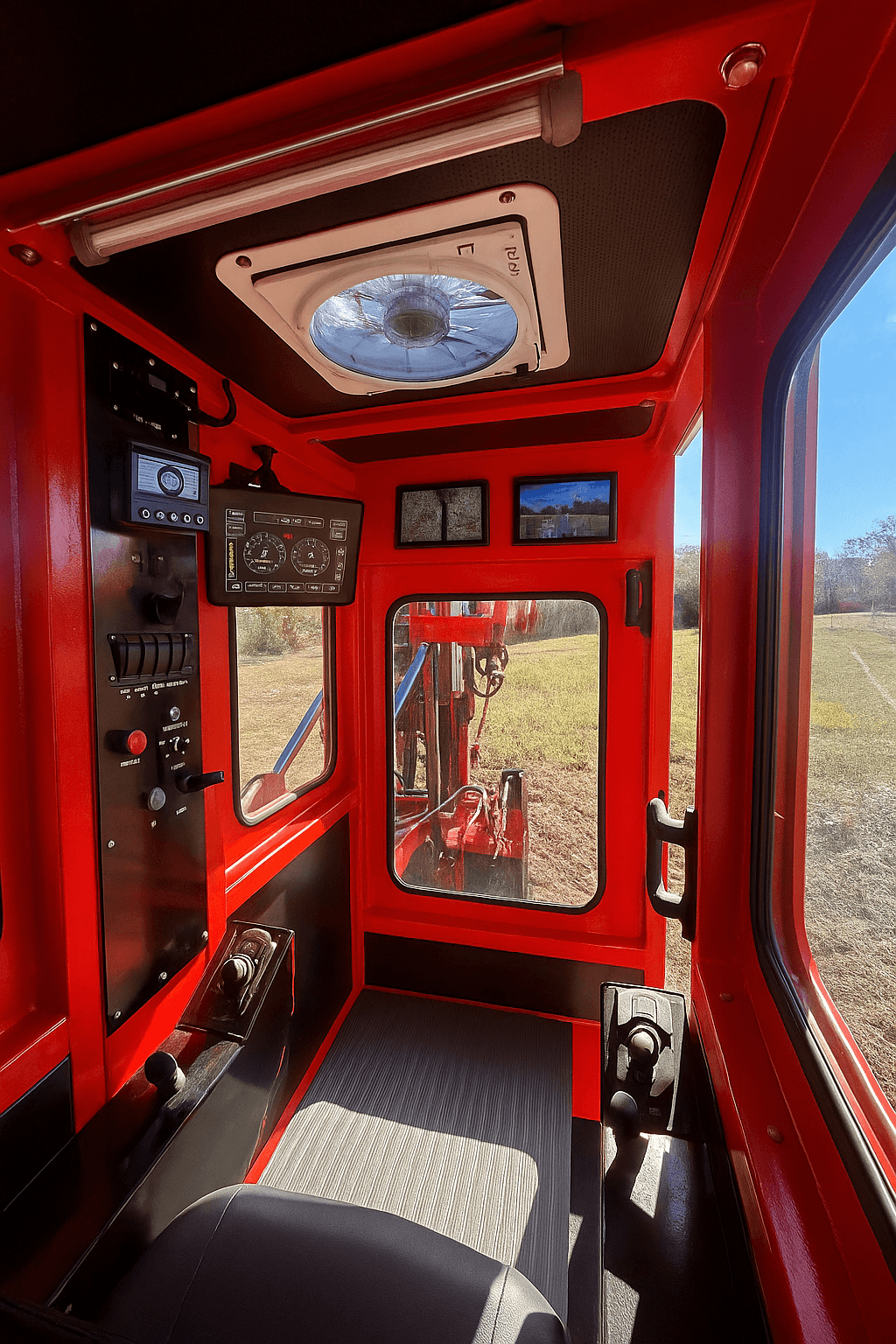

Climate-Controlled Cabin
Enjoy a comfortable, controlled environment with a fully enclosed AC cabin for your drilling operations.

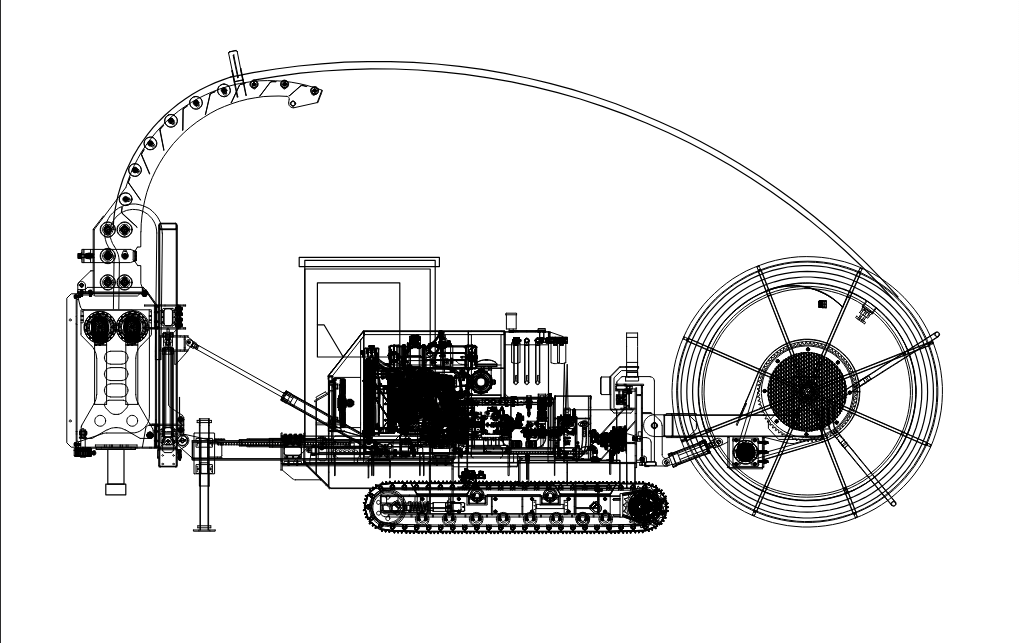

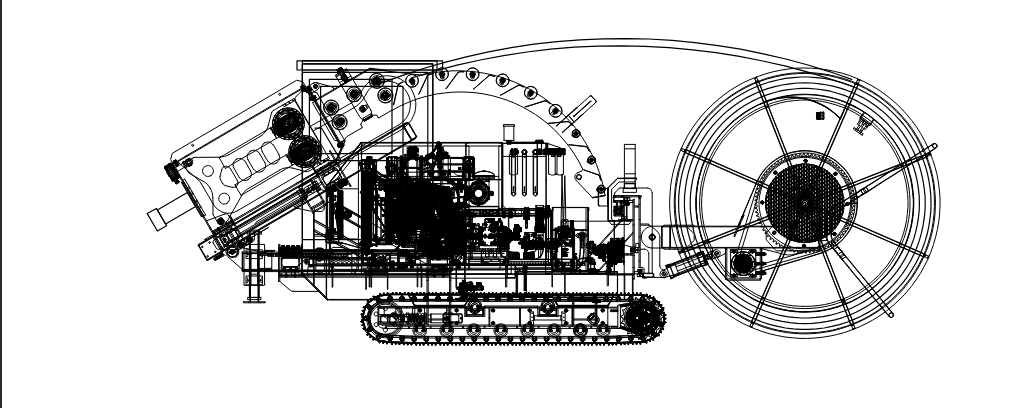

Take a Closer Look.
Inspect These Specs.
| Injector Head | PUSH/PULL Rating Thrust (pull down) 30,000 lb Pullback (lift) 60,000 lb |
| Power Plant | 125 hP Deutz Diesel QSB |
| Reel Capacity | 1,200 + ft 2.875 in 1,400 + ft 2.625 in 1,800 + ft 2.375 in Hydraulic Level Rewind |
| Fluids | 64 gal Hydraulic Tank 110 gal Diesel Tank In-line Flow Meter & Pressure Sensor Hammer Union Connections High-Pressure Swivel Remote Pump Operation |
| Drilling Motor | Mud Motor Options Available Length: 9 - 18 ft. Diameter: 2.875 - 4.5 in. Bit Speed: Variable |
