DCT™ 150V -
Your Compact Mobile Drilling Solution.
Introducing the DCT™ 150V: Your Compact Solution for Drilling.
Explore the efficiency and versatility of our DCT™ 150V, a track-mounted drilling rig meticulously designed for all drilling applications. Tailored for 200-400 ft. deep holes, this unit excels in limited space and restricted access scenarios, providing unmatched adaptability and performance.
Equip your operations with the DCT™ 150V's elite 15,000-pound capacity injector head, fluid swivels, levelwind system, and CT stripper. Embrace innovation, mobility, and efficiency - choose the DCT™ 150V for your next-gen drilling needs.
Check Out The Highlights.

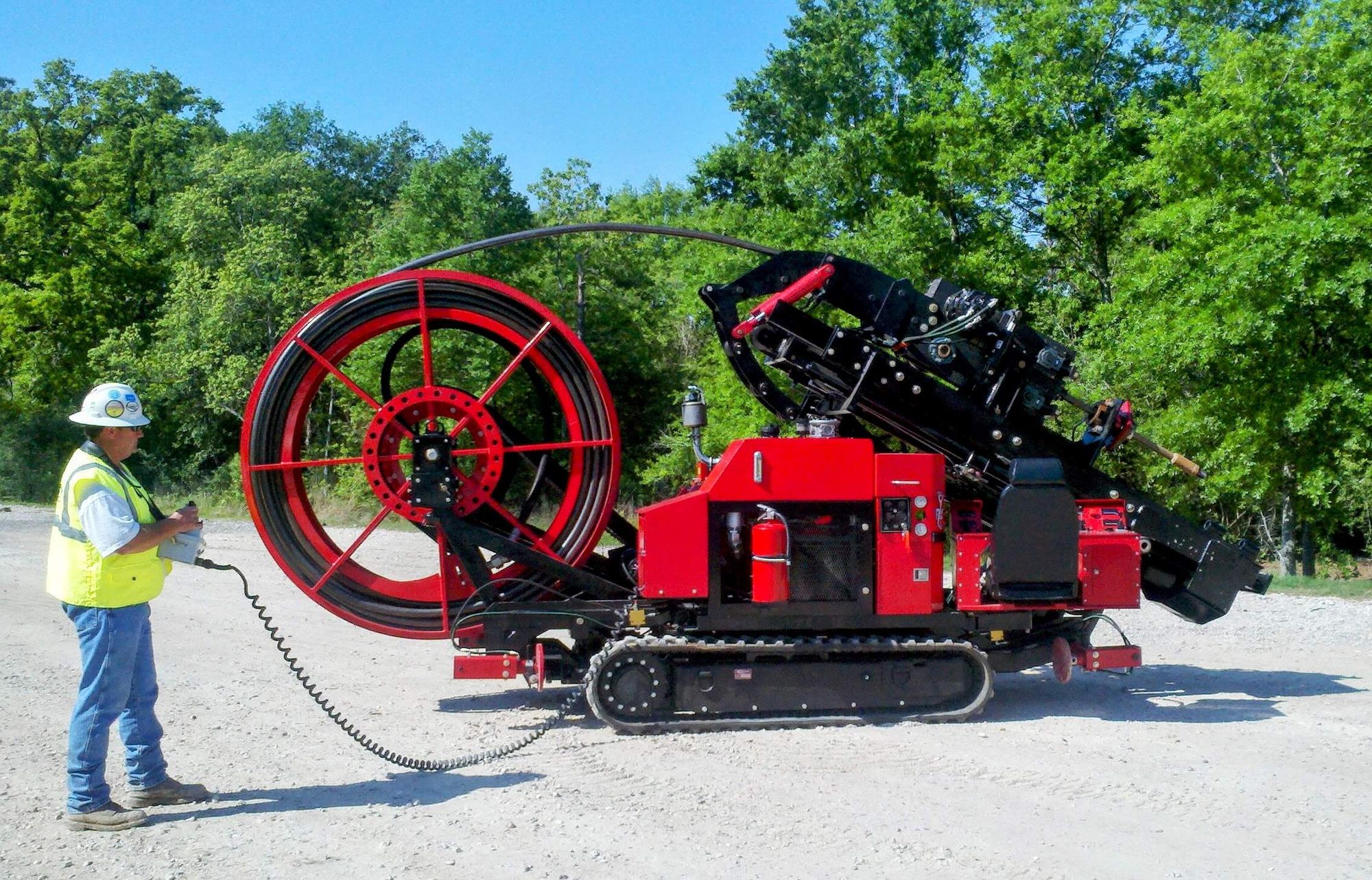

Remote Driven
Experience seamless control with remote-driven capabilities, ensuring precision during movement and setup.
Crawler Track Mobility
Easily navigate tough terrains with stable, flexible crawler track mobility in tight spaces.
Compact Design
Maximize small spaces with a compact design, perfect for tight locations.
Integrated Rack
Boost efficiency with an integrated rack for streamlined operations.
Air or Liquid Drilling Capable
Adapt to any drilling condition with the flexibility for both air and fluid methods.
Remote Mud Pump and Cleaner System
Access remote locations easily with a convenient remote mud pump and mud cleaner system.
Captain's Chair
Enhance operator comfort and control with a captain's chair for easier drilling operations.
Multipurpose Adaptability
Adapt easily to hydraulic lines for tool and communication, enhancing unit versatility.
Compatible Connections
Use CT drilling tools with DTH hammers seamlessly; their compatible connections ensure peak performance.
Take a Closer Look.
Inspect These Specs.
| Injector Head | PUSH/PULL Rating Thrust (pull down) 10,000 lb Pullback (lift) 20,000 lb |
| Power Plant | 48 hP Deutz Diesel F3L2011 |
| Reel Capacity | 400 + ft 2.00 in 500 + ft 1.75 in Hydraulic Level Rewind Standard Tubing 2.00 in. Diameter (.173 in. wall thickness) |
| Fluids | 22 gal Hydraulic Tank 20 gal Diesel Tank |
| Drilling Motor | Mud Motor Length: 9 ft. Diameter: ~3.5 in. Bit Speed: Variable - 200 RPM +/- Max. |
